How to Index Data in Python Numpy Arrays

Indexing and slicing

Red background with numbers and colored blocks
Photo by Magda Ehlers from Pexels

Basic Indexing

Basic Indexing can be done to access a particular element from the NumPy arrays.

1. One-dimensional array

  • Creating a one-dimensional array
import numpy as np
one_d=np.array([10,20,30,40])
print (one_d)
#Output:array([10, 20, 30, 40])
Image of an example array
Image by Author
  • Accessing elements from the array by positive indexing

In Python, all indices are zero_based. Index 0 represents the first element in the array.

one_d[2] → 30

  • Accessing elements from the array by negative indexing

Negative indexing starts from the end of the array. -1 represents the last element.

one_d[-1] → 40

2. Two-dimensional array

  • Creating a two-dimensional array
two_d=np.array([[0,1],[2,3],[4,5]])
print (two_d)
#Output:
[[0 1]
 [2 3]
 [4 5]]
  • Accessing particular element in a two-dimensional array
x[i,j]
or
x[(i,j)]

i → row_index (it starts from 0)
j → column_index (it starts from 0)

print (two_d[(1,2)])
#Output: 5
print (two_d[1,2])
#Output: 5
  • Accessing a particular row in a two-dimensional array

If we provide a single index, it will be taken as row_index

x[i]

i → row_index

print (two_d[(1)])
#Output:[3 4 5]
  • Accessing a particular column in a two-dimensional array

x[:,j]

: → i (row_index), take all values (: is a full slice, from start to end)
j → column_index

print (two_d[:,1])
#Output:[1 4 7]
Examples of two-dimensional arrays
Image by Author

3. Three-dimensional array

  • Creating a three-dimensional array
three_d=np.array([[[0,1],[2,3]],[[4,5],[6,7]]])
print (three_d)
#Output:
[[[0 1]
  [2 3]]

 [[4 5]
  [6 7]]]
Exaample of a three-dimensional array
Image by Author
  • Accessing a particular element in a three-dimensional array
print (three_d[1,0,1])
#Output: 5
print (three_d[(1,0,1)])
#Output: 5
print (three_d[(-1,-1,-1)])
#Output: 7
  • Accessing particular element from a three-dimensional array using negative indexing
print (three_d[(-1,-1,-1)])
#Output: 7
  • Accessing a particular matrix (or two-dimensional array) in a three-dimensional array

x[1] → selects the first matrix.

If we specify only the first index, it will select the particular matrix.

print (three_d[(1)])
#Output:
[[4 5]
 [6 7]]
Image by Author
  • Accessing a particular row in a particular matrix

x[i,j] → If we specify only i and j values, it will select the row(j) from the matrix(i)

print (three_d[(1,0)])
#Output:
[4 5]
Example of a three-dimensional array
Image by Author
  • Accessing a particular column in a particular matrix

x[i,:,k] → select column k from matrix i.

j is given as : which means full slice.[All rows)

print (three_d[1,:,1])
#Output:
[5 7]
Example of a three-dimensional array
Image by Author
  • Accessing the elements at the same position from each matrix.

x[:,j,k] → It will select the element at row j and column k in all the matrix.
i is given as : which means full slice.[ all matrix]

print (three_d[:,1,1])
#Output:[3 7]
Example of a three-dimensional array.
Image by Author

IndexError

Attempting to use an index that is too large will result in an IndexError.

Example 1: One-dimensional array

print (one_d[5])
#Output:IndexError: index 5 is out of bounds for axis 0 with size 4

Basic Slicing

Basic slicing extends Python’s basic concept of slicing to N dimensions.

1. Slicing one-dimensional array

In Slicing, we can specify a range of index

s[i:j:k] — slice of s from i to j with step k

i →start index
j → stop index
k → step (k should not be 0)

slice1=one_d[0:3:2]
print (slice1)
#Output: [10, 30]

It will slice elements from 0 indexes to the third index(exclusive) by step 2.

Example of a one-dimensional array
Image by Author

The return type of basic slicing will be ndarray

print (type(slice1))
#Output:numpy.ndarray

All arrays generated by basic slicing are always “views” of the original array.
Views: An array that does not own its data, but refers to another array’s data instead.

So if we modify the original array, the view also modified. Similarly, if we modify the view, the original array also modified.

Example 1: Modifying slice1 will also modify the original array one_d

slice1[0]=99999
#Modifying slice1 will modify the original array also.
print (slice1)
#Output:[99999,    30]
print(one_d)
#Output:[99999,    20,    30,    40]

Example 2: Modifying the original array will also modify the array generated by basic slicing

one_d[0]=77777
print (one_d)
#Output:[77777    20    30    40]
print (slice1)
#Output: [77777    30]

Note: NumPy slicing creates a view instead of a copy as in the case of builtin Python sequences such as string, tuple, and list. Care must be taken when extracting a small portion from a large array which becomes useless after the extraction because the small portion extracted contains a reference to the larger original array whose memory will not be released until all arrays derived from it are garbage-collected. In such cases, an explicit copy() is recommended. –Python docs

Example 3: Omitted start and stop index defaults to the first index and last index of the array. The negative step indicates the reverse direction.

print (one_d[::-2])
#Output: array([40, 20])
Example of one-dimensional array.
Image by Author

2. Slicing two-dimensional array

By Slicing a two-dimensional array in both axis, we can get a subset of the original array.

x[i:j:k,l:m:n]

i:j:k → Slice along the x-axis (rows)
l:m:n → slice along y-axis(columns)

Example 1:
two_d[1:,1:] →Select elements from row 1 to the last row and column 1 to the last column.

Example of two-dimensional array.
Image by Author
print (two_d[1:,1:])
#Output:
[[4 5]
 [7 8]]

Example 2:

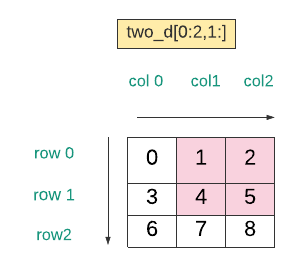

two_d[0:2,1:] → Select elements from row 0 to row2(excluded) and column 1 till the last column.

0:2 → Slice for x-axis → select row 0 till row 2(excluded)
1: → Slice for y-axis → select column 1 till the last column

Example of a two-dimensional array.
Image by Author
print (two_d[0:2,1:])
#Output:
[[1 2]
 [4 5]]

Example 3:
two_d[1:,::2]

1: →Select row 1 till the last row
::2 → Select columns from columns1 to the last column by step 2

Image by Author
print (two_d[1:,::2])
#Output:
[[3 5]
 [6 8]]

3. Slicing three-dimensional array

By slicing three-dimensional array along three axes, we can select a subset of the original array

x[a:b:c,i:j:k,l:m:n]

a:b:c →Slice the plane
i:j:k → Slice the rows
l:m:n → Slice the columns

Example 1:
three_d[:,:,1:]
: → Select all planes
: → Select all rows
1: → Select columns from column 1 to the last column

Example of a two-dimensional array.
Image by Author
print (three_d[:,:,1:])
#Output:
[[[1]
  [3]]

 [[5]
  [7]]]

Out of Range indexes

Out of range indexes are handled gracefully by slicing.

print (three_d[2:,:,:])
#Output: []

Advanced Indexing

Integer Array Indexing

Integer array indexing allows the selection of arbitrary items in the array based on their N-dimensional index. Each integer array represents a number of indexes into that dimension- Python docs

Example 1: Two_dimensional array

two_d[[0,1,2],[0,1,2]]

Example of integer array
Image by Author

For each row, a specific element to be selected.
row_index → [0,1,2] → row index specifies row to be selected
column_index →[0,1,2] → column index specifies the element to choose for the corresponding row

Example of two dimensional array
Image by Author
print (two_d[[0,1,2],[0,1,2]])
#Output:[0 4 8]

Example 2: Three-dimensional array

three_d[[0,1],[0,1],[0,1]]
Result will be it will select elements from ( plane 0,row 0,col 0) and (plane 1,row1,col1).

Example of three-dimensional array.
Image by Author
print (three_d[[0,1],[0,1],[0,1]])
#Output:[0 4 8]

Git Hub Link

The code used here is available as Jupyter Notebook on Git Hub

Conclusion

  • In basic indexing, out of range indexes will raise an IndexError
  • In basic slicing, out of range indexes are handled gracefully.
  • All arrays generated by basic slicing are the views of the original array.
  • In basic indexing, x[i,j,k] is equivalent to x[(i,j,k)]
  • In basic slicing, we should not use a tuple of slice objects.
    a[1:,1:] → right
    a[(1:,1:)] → wrong
  • Full slice will select the entire plane/rows/columns based on the axes mentioned.
    a[:] → It will select all rows in a one-dimensional array
    a[1,:] →It will select all columns in row1 in a two-dimensional array
    a[:,1,1] →It will select row 1 and col1 in all planes in a three-dimensional array
  • For the trailing index, the omitted index represents a full slice
    a[1] is the same as a[1,:] in a two-dimensional array
    a[1,1] is same as a[1,1,:] in three-dimensional array

Resources(Python Documentation)

Indexing and Slicing

view
